Create a Dialog Box with an Image

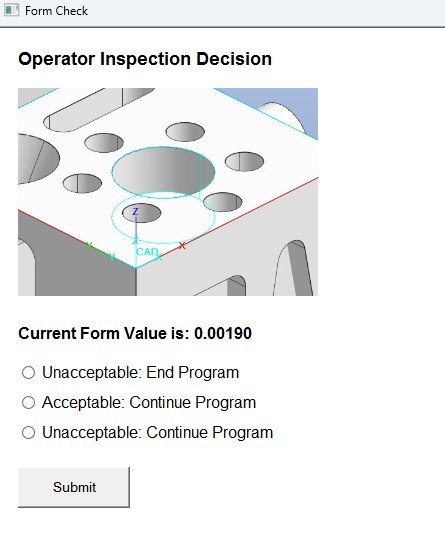

To create a dialog with an attached image by itself is not possible within CMM Manager and we must use a HTML code. The part must be aligned with a fully constrained alignment.
ISSUE: We need to measure CYNDR1 first for form. If that is not correct there is no sense moving forward. We will display the Form value then let the operator decide what to do next.
CMM Manager - Gage Ball Measurement
Learn how to obtain gage ball depth and overall gage ball height.
CMM Manager: Slot with MMC
Learn how to create VB Scripting to create a diameter within a slot that MMC can be applied to for position.
How to Group Features within a Program
Learn how to group features within a program in CMM Manager.
CMM Manager - Place CAD with Part Program
Learn how to use the CMM Manager Place Part with Part Program
CMM Manager - Align Part
When your offline program and the physical part on the CMM do not align.
CMM Manager - Datum/ Cloud to CAD Alignment
Learn how to use CMM Manager’s Cloud to CAD Alignment function
CMM Manager Probe Rack
How to set up a probe rack in CMM Manager. Click image on the left.
Star Probe Assembly
Here is how to create a star probe assembly. Either in offline mode or online mode.
Create a Folder and Save Report with Customer Data.
Create a Folder and Save Report with Customer Data.
How To: Operation Planner
Do you manufacture parts in distinct operations? Is the part also inspected after / during each of these distinct manufacturing operations? Are you creating unique CMM-Manager programs for each operation? If so, there is a better way
How to Create a VB Script Program to Better Locate Position of a Feature
The issue is, in our program if Circle1 is not in the correct location, due to machine targeting or various other reasons we will want to manually check the diameter of Circle1 and use this new location to check the diameter in CNC mode.
