Symmetric Parts and GD&T
In this Question Line video, Jason answers the following question regarding symmetric parts:
Is the use of symmetry in this example correct?

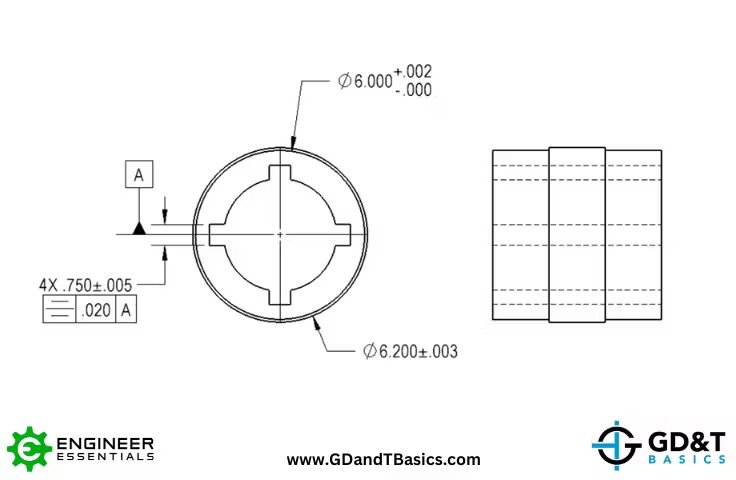

Because the submitted drawing was proprietary information, Jason created and discusses the simple example shown below that brings forth the features and tolerances in question.
In this video, Jason explains that symmetry was removed in the 2018 revision of ASME Y14.5 due to common misuse and discusses why the above drawing is incorrect – and what to do to correct it.
Our GD&T experts would love to hear from you! Submit your GD&T question at the link below:
https://www.gdandtbasics.com/share-your-gdt-questions/
If your question is selected, we will notify you when our video answer is posted to our YouTube channel.
* If you are a current student, reach out to us directly and we will get you into contact with your instructor. Active students’ questions receive a direct response within 24-48 hours.
